IntaRNA 4596356

Input and runtime details for job 4596356 (precomputed example)

Sequence Parameters

? Query ncRNA (short) in FASTA[.fa]
? Index first query position1
? Target RNA (long) in FASTA[.fa]
? Target NCBI RefSeq IDNC_000913
? All repliconsyes
? Extract sequences aroundstart codon
? nt upstream (1-300)75
? nt downstream (1-300)75
? Index first target position-75

Output Parameters

? Number of interactions per RNA pair1
? Suboptimal interaction overlap can overlap in query
? Max. interaction lengthnot provided
? Max. absolute energy of an interaction0
? Max. delta energy above mfe of an interaction100
? No lonely base pairsyes
? No GU at helix endsyes

Seed Parameters

? Min. number of basepairs in seed7
? Max. Number of mismatches in seed0
? Maximal energy0
? Minimal unpaired probability (per RNA)0
? Seed position (query)not provided
? Seed position (target)not provided
? Ignore seeds with GU base pairsno
? Ignore seeds with GU endsyes

Folding Parameters

? Temperature for energy computation37.0
? Access. query: folding window size150
? Access. query: max. basepair distance100
? Access. target: folding window size150
? Access. target: max. basepair distance100
? Energy parameter set (Vienna package) Turner model, 2004

Job ID 4596356 (server version trunk)

?Job Submitted & Queued@ Mon Jan 27 14:10:48 CET 2020
?Processing Started@ Mon Jan 27 14:13:48 CET 2020
?IntaRNA Finished & Post-Processing@ Mon Jan 27 14:14:50 CET 2020
?Post-Processing Finished@ Mon Jan 27 14:16:49 CET 2020
?Job Completed@ Mon Jan 27 14:17:02 CET 2020
 DIRECT ACCESS: http://rna.informatik.uni-freiburg.de:80/RetrieveResults.jsp?jobID=4596356&toolName=IntaRNA ( 30 days expiry )

The job description you specified

FnrS - E. coli


? Output download complete results [zip]

Downloadable files

[csv]
[png] [pdf]
[png] [pdf]
[txt]
[html] [pdf] [png]

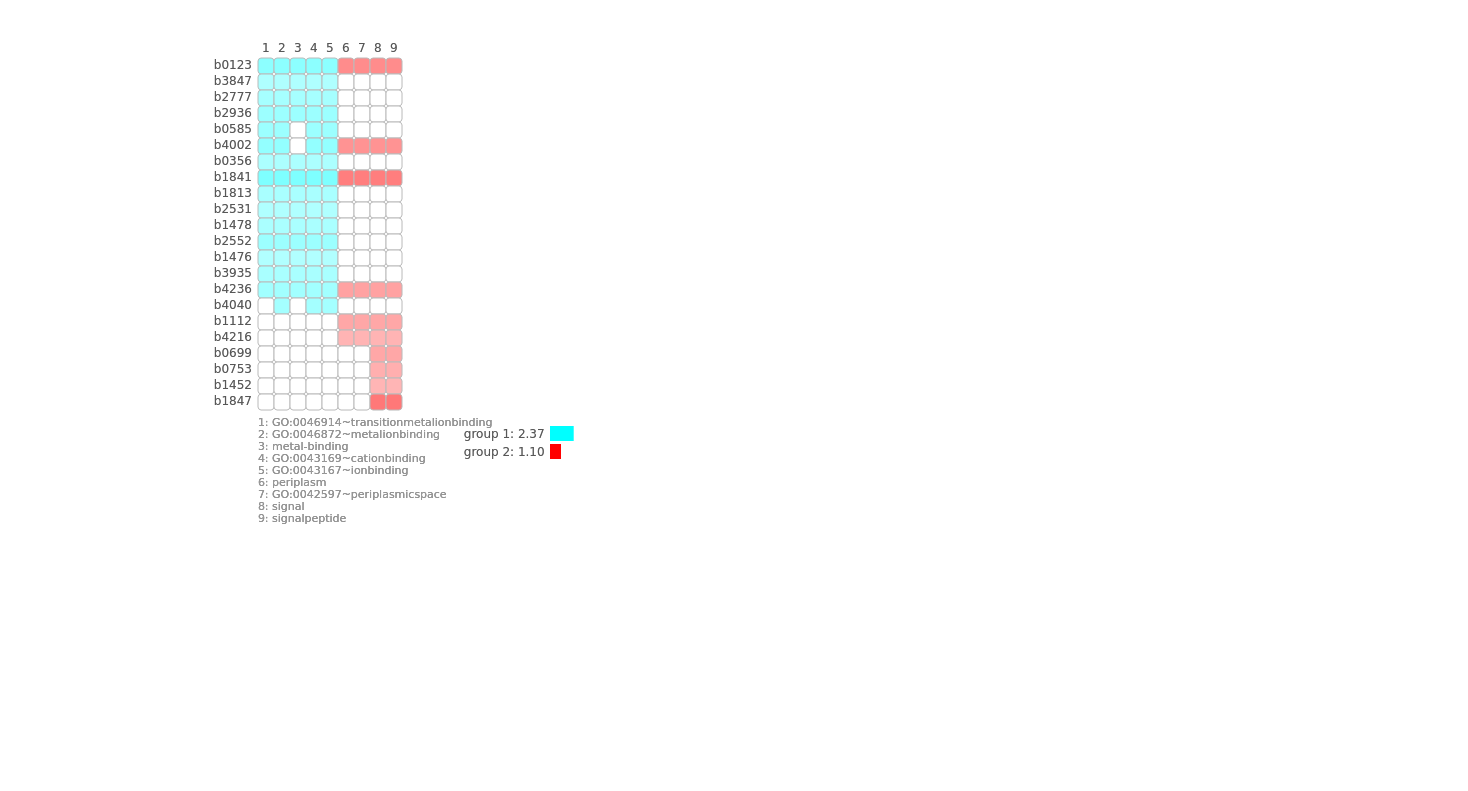

heatmap

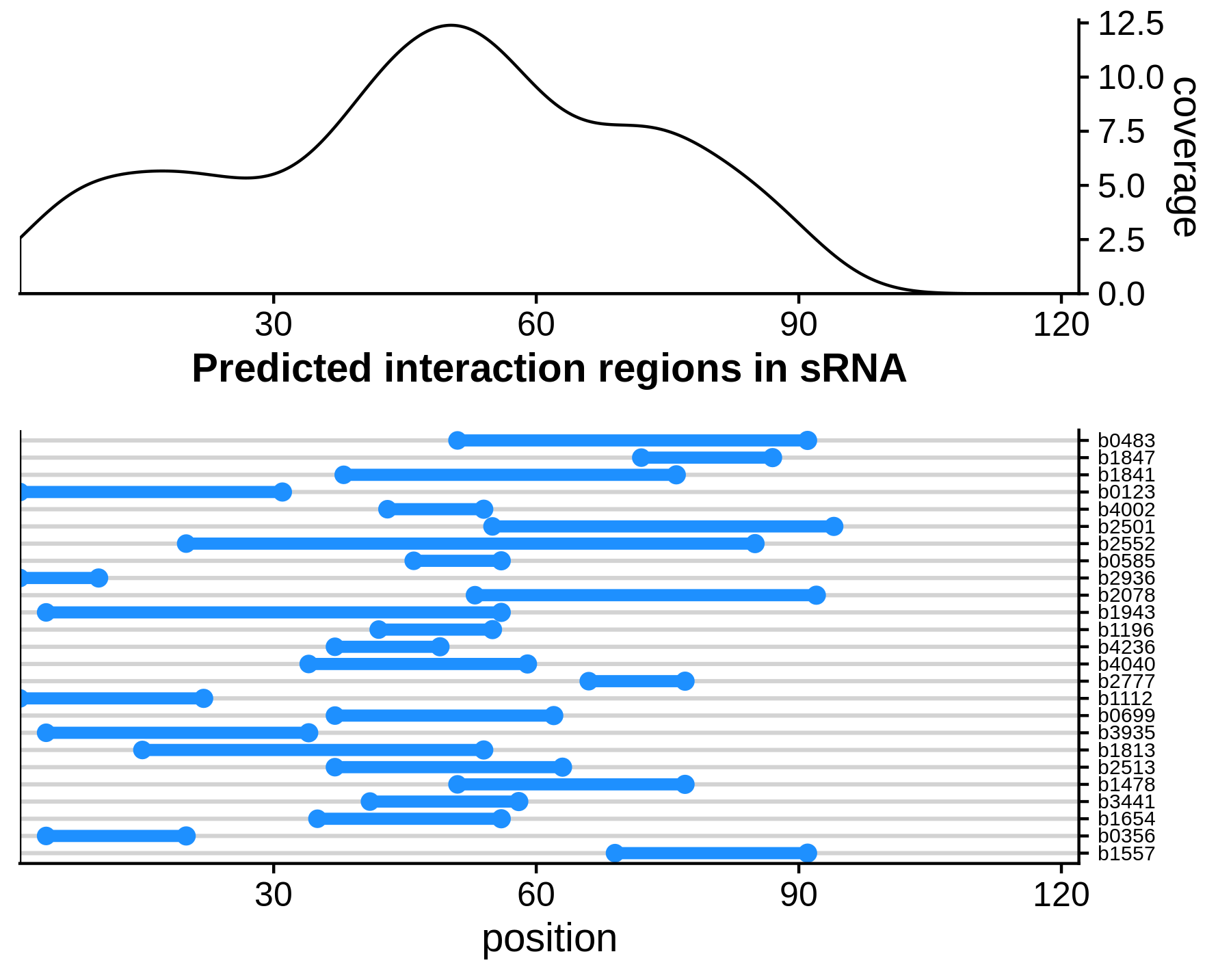

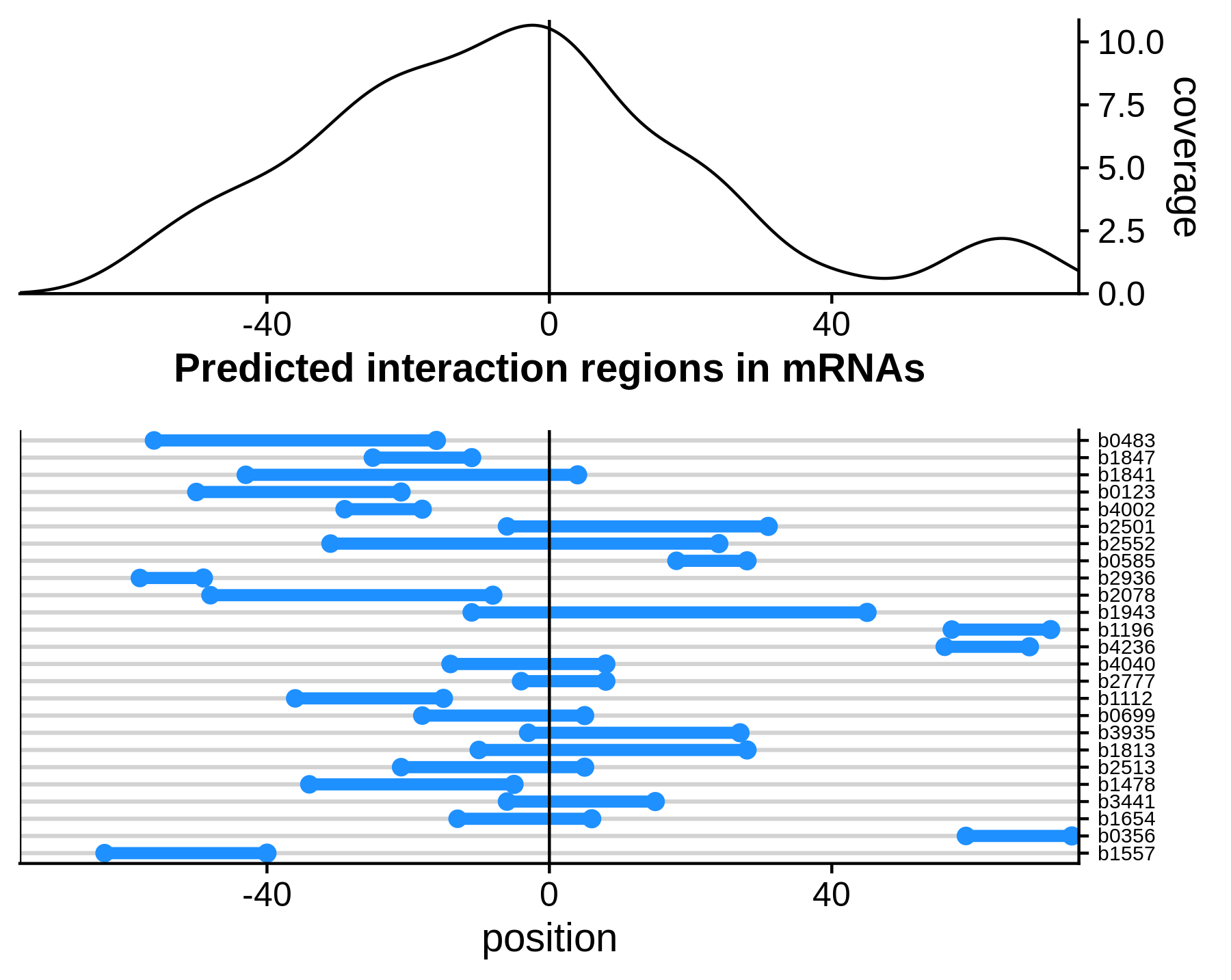

? Identified Interactions for NC_000913 Escherichia coli str. K-12 substr. MG1655

Sort by selecting a column name
Target Start(T) End(T) Query Start(Q) End(Q) Energy p-value fdr gene annotation
b0483 -56 -16 FnrS 51 91 -15.77 0.0002842 0.5665147 ybaQ putative DNA-binding transcriptional regulator
b1847 -25 -11 FnrS 72 87 -15.67 0.0003127 0.5665147 yebF extracellular Colicin M immunity family protein
b1841 -43 4 FnrS 38 76 -15.32 0.000434 0.5665147 yobA CopC family protein
b0123 -50 -21 FnrS 1 31 -14.36 0.0010196 0.9422174 cueO multicopper oxidase (laccase)
b4002 -29 -18 FnrS 43 54 -13.88 0.0015278 0.9422174 zraP Zn-dependent periplasmic chaperone
b2501 -6 31 FnrS 55 94 -13.4 0.0022581 0.9422174 ppk polyphosphate kinase component of RNA degradosome
b2552 -31 24 FnrS 20 85 -13.23 0.0025851 0.9422174 hmp fused nitric oxide dioxygenase/dihydropteridine reductase 2
b0585 18 28 FnrS 46 56 -13.23 0.0025851 0.9422174 fes enterobactin/ferrienterobactin esterase
b2936 -58 -49 FnrS 1 10 -13.18 0.0026891 0.9422174 loiP Phe-Phe periplasmic metalloprotease OM lipoprotein low salt-inducible Era-binding heat shock protein
b2078 -48 -8 FnrS 53 92 -13.16 0.0027318 0.9422174 baeS sensory histidine kinase in two-component regulatory system with BaeR
Rows: 1-10 11-20 21-30 31-40 41-50 51-60 61-70 71-80 81-90 91-100 all

Details of Selected Interaction Download Interaction Details

Target

Query





Job resubmission

Use the following button if you want to resubmit the job with altered input or parameterization:
Feeds the job parameters to the input page to resubmit the job.

de.NBI usability assessment

Please support us by filling this short quality survey for evaluating this de.NBI service.

When using IntaRNA please cite :

Results are computed with IntaRNA version 3.1.3 linking Vienna RNA package 2.4.14
