IntaRNA 2443602

Input and runtime details for job 2443602 (precomputed example)

Sequence Parameters

? Query ncRNA (short) in FASTA[.fa]
? Target RNA (long) in FASTA[.fa]
? Target NCBI RefSeq IDNC_002516
? All repliconsyes
? Extract sequences aroundstart codon
? nt up (1-300)75
? nt down (1-300)75

Output Parameters

? Number of (sub)optimal interactions1
? Suboptimal interaction overlap can overlap in query
? Max. absolute energy of an interaction0
? Max. delta energy above mfe of an interaction100

Seed Parameters

? Min. number of basepairs in seed7
? Max. Number of mismatches in seed0
? Maximal energy0
? Minimal unpaired probability (each)0
? Seed position (query)not provided
? Seed position (target)not provided

Folding Parameters

? Temperature for energy computation37.0
? Access. query: folding window size150
? Access. query: max. basepair distance100
? Access. target: folding window size150
? Access. target: max. basepair distance100
? Energy parameter set (Vienna package) Turner model, 2004

Job ID 2443602 (server version trunk)

?Job Submitted & Queued@ Sat Feb 17 12:30:11 CET 2018
?Processing Started@ Sat Feb 17 12:30:29 CET 2018
?IntaRNA Finished & Post-Processing@ Sat Feb 17 13:39:13 CET 2018
?Post-Processing Finished@ Sat Feb 17 13:39:14 CET 2018
?Job Completed@ Sat Feb 17 13:39:19 CET 2018
 DIRECT ACCESS: http://rna.informatik.uni-freiburg.de:80/RetrieveResults.jsp?jobID=2443602&toolName=IntaRNA ( 30 days expiry )

The job description you specified

PrrF1 - example

? Output download complete results [zip]

Downloadable files

[csv]
[txt]
[png] [pdf] [ps]

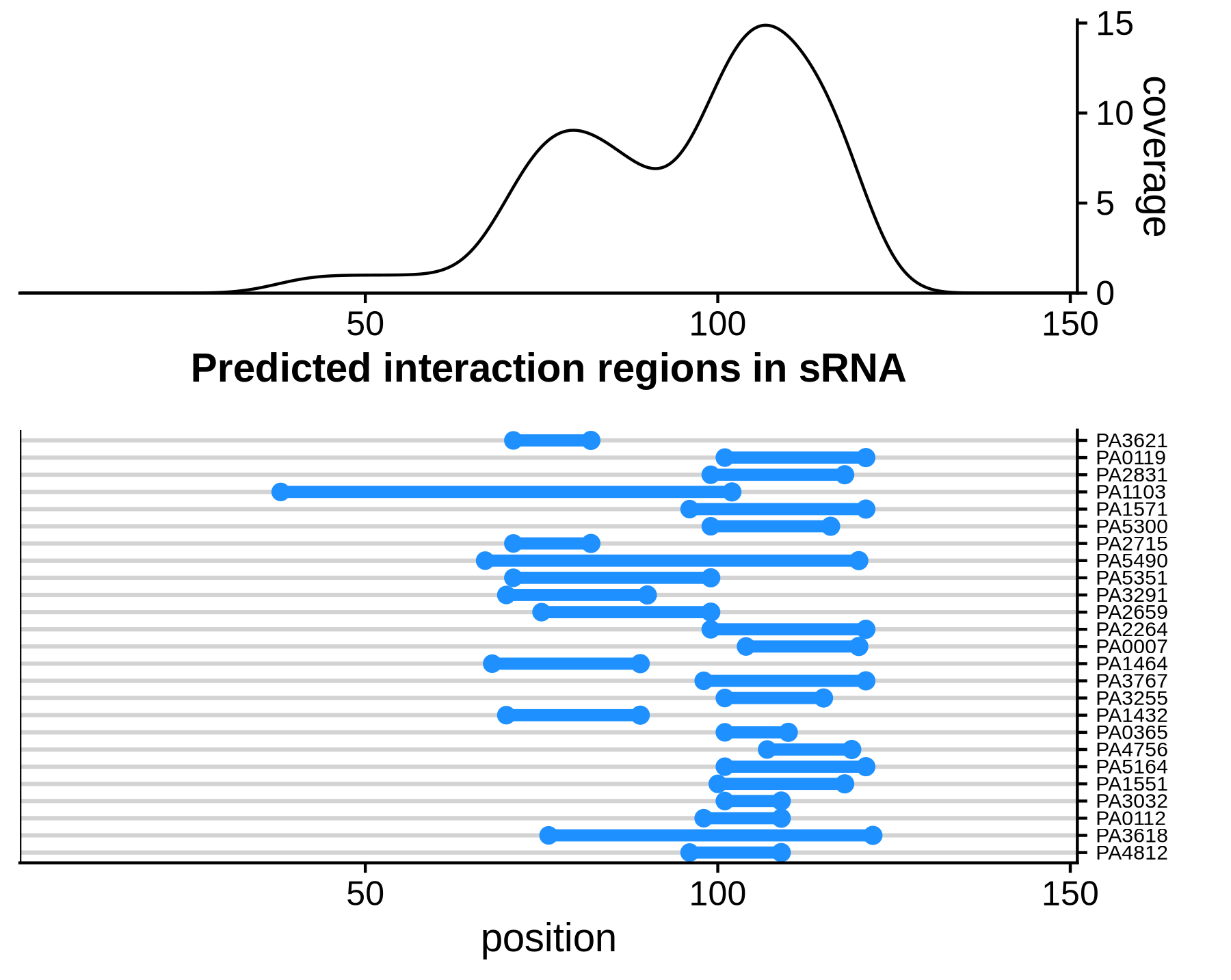

[png] [pdf] [ps]
[html] [pdf]


heatmap

? Identified Interactions for NC_002516 Pseudomonas aeruginosa PAO1

Sort by selecting a column name:
p-value fdr value Target Position Query Position Energy Gene Annotation
8.2e-06 0.03888 PA3621 119 -- 130 PrrF1 71 -- 82 -19.76620 fdxA ferredoxin I
0.0002537 0.60039 PA5300 31 -- 49 PrrF1 99 -- 116 -16.60480 cycB cytochrome C5
0.0005342 0.69645 PA5164 62 -- 79 PrrF1 101 -- 122 -15.78150 rmlC dTDP-4-dehydrorhamnose 35-epimerase
0.0006923 0.69645 PA0007 72 -- 88 PrrF1 104 -- 120 -15.48190   'Product name confidence: class 4 (Homologs of previously reported genes of unknown function or no similarity to any previously reported sequences)'
0.0007356 0.69645 PA1571 57 -- 69 PrrF1 96 -- 108 -15.41090   'Product name confidence: class 4 (Homologs of previously reported genes of unknown function or no similarity to any previously reported sequences)'
0.0010054 0.70795 PA3255 2 -- 16 PrrF1 101 -- 115 -15.03850   'Product name confidence: class 4 (Homologs of previously reported genes of unknown function or no similarity to any previously reported sequences)'
0.0011714 0.70795 PA0365 118 -- 127 PrrF1 101 -- 110 -14.85250   'Product name confidence: class 4 (Homologs of previously reported genes of unknown function or no similarity to any previously reported sequences)'
0.0013051 0.70795 PA4756 127 -- 139 PrrF1 107 -- 119 -14.71950 carB carbamoyl phosphate synthase large subunit
0.0013559 0.70795 PA0112 35 -- 47 PrrF1 98 -- 110 -14.67210   'Product name confidence: class 4 (Homologs of previously reported genes of unknown function or no similarity to any previously reported sequences)'
0.0014955 0.70795 PA4657 27 -- 44 PrrF1 105 -- 123 -14.55000   'Product name confidence: class 4 (Homologs of previously reported genes of unknown function or no similarity to any previously reported sequences)'

Details of Selected Interaction Download Interaction Details

Target

Query





Job resubmission

Use the following button if you want to resubmit the job with altered input or parameterization:
Feeds the job parameters to the input page to resubmit the job.

de.NBI usability assessment

Please support us by filling this short quality survey for evaluating this de.NBI service.

When using IntaRNA please cite :

Results are computed with IntaRNA version 2.1.0 (wrapper 1.1.3) linking Vienna RNA package 2.4.3
