IntaRNA 3751556

Input and runtime details for job 3751556 (precomputed example)

Sequence Parameters

? Query ncRNA (short) in FASTA[.fa]
? Index first query position1
? Target RNA (long) in FASTA[.fa]
? Target NCBI RefSeq IDNC_000913
? All repliconsyes
? Extract sequences aroundstart codon
? nt upstream (1-300)75
? nt downstream (1-300)75
? Index first target position-75

Output Parameters

? Number of interactions per RNA pair1
? Suboptimal interaction overlap can overlap in query
? Max. interaction lengthnot provided
? Max. absolute energy of an interaction0
? Max. delta energy above mfe of an interaction100
? No lonely base pairsyes
? No GU at helix endsyes

Seed Parameters

? Min. number of basepairs in seed7
? Max. Number of mismatches in seed0
? Maximal energy0
? Minimal unpaired probability (per RNA)0
? Seed position (query)not provided
? Seed position (target)not provided
? Ignore seeds with GU base pairsno
? Ignore seeds with GU endsyes

Folding Parameters

? Temperature for energy computation37.0
? Access. query: folding window size150
? Access. query: max. basepair distance100
? Access. target: folding window size150
? Access. target: max. basepair distance100
? Energy parameter set (Vienna package) Turner model, 2004

Job ID 3751556 (server version trunk)

?Job Submitted & Queued@ Mon Jan 27 14:09:18 CET 2020
?Processing Started@ Mon Jan 27 14:12:06 CET 2020
?IntaRNA Finished & Post-Processing@ Mon Jan 27 14:12:59 CET 2020
?Post-Processing Finished@ Mon Jan 27 14:14:52 CET 2020
?Job Completed@ Mon Jan 27 14:15:02 CET 2020
 DIRECT ACCESS: http://rna.informatik.uni-freiburg.de:80/RetrieveResults.jsp?jobID=3751556&toolName=IntaRNA ( 30 days expiry )

The job description you specified

CyaR - E. coli


? Output download complete results [zip]

Downloadable files

[csv]
[png] [pdf]
[png] [pdf]
[txt]
[html] [pdf] [png]

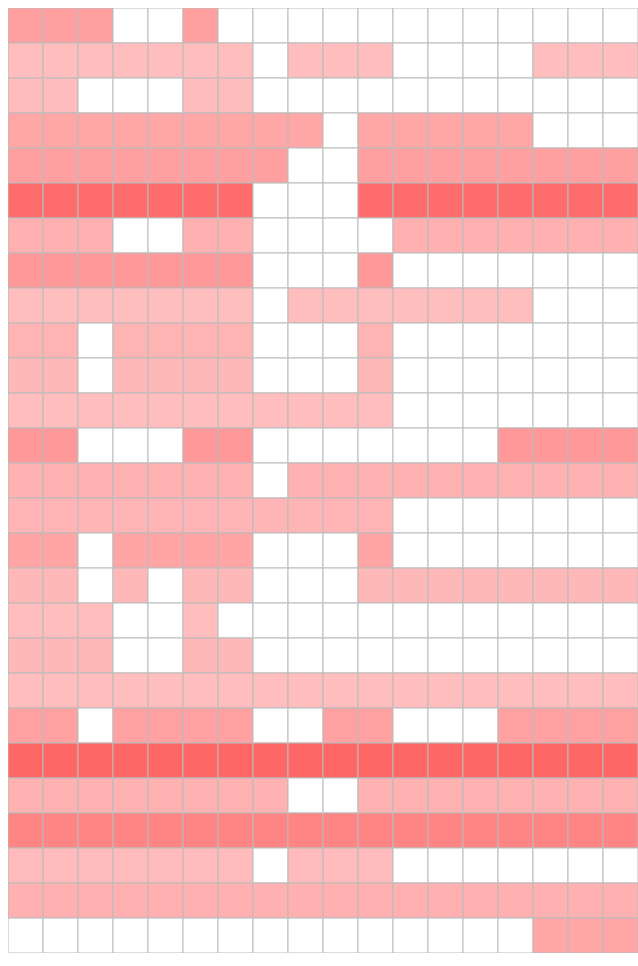

heatmap

? Identified Interactions for NC_000913 Escherichia coli str. K-12 substr. MG1655

Sort by selecting a column name
Target Start(T) End(T) Query Start(Q) End(Q) Energy p-value fdr gene annotation
b2077 26 54 CyaR 1 30 -18.84 0.0001018 0.2119128 iceT putative citrate/iron-citrate/zinc-citrate efflux transporter
b4074 -70 -57 CyaR 35 48 -18.4 0.0001518 0.2119128 nrfE heme lyase (NrfEFG) for insertion of heme into c552 subunit NrfE
b1485 -11 12 CyaR 25 49 -16.69 0.0006365 0.4585162 ddpC DD-dipeptide ABC transporter permease
b2039 31 74 CyaR 2 46 -16.65 0.0006569 0.4585162 rfbA glucose-1-phosphate thymidylyltransferase
b1498 53 75 CyaR 21 44 -16.06 0.0010357 0.5783349 ydeN putative Ser-type periplasmic non-aryl sulfatase
b1686 60 73 CyaR 35 49 -15.77 0.0012872 0.5989771 menI 14-dihydroxy-2-naphthoyl-CoA hydrolase
b1209 -57 -34 CyaR 11 36 -15.14 0.0020364 0.7364947 lolB lipoprotein localization factor
b2556 40 58 CyaR 20 38 -15.09 0.0021103 0.7364947 glrK sensor protein kinase regulating glmY sRNA in two-component system with response regulator GlrR
b3770 36 54 CyaR 35 52 -14.65 0.0028743 0.779419 ilvE branched-chain amino acid aminotransferase
b3541 -74 -53 CyaR 14 30 -14.49 0.0032095 0.779419 dppD dipeptide/heme ABC transporter ATPas
Rows: 1-10 11-20 21-30 31-40 41-50 51-60 61-70 71-80 81-90 91-100 all

Details of Selected Interaction Download Interaction Details

Target

Query





Job resubmission

Use the following button if you want to resubmit the job with altered input or parameterization:
Feeds the job parameters to the input page to resubmit the job.

de.NBI usability assessment

Please support us by filling this short quality survey for evaluating this de.NBI service.

When using IntaRNA please cite :

Results are computed with IntaRNA version 3.1.3 linking Vienna RNA package 2.4.14
